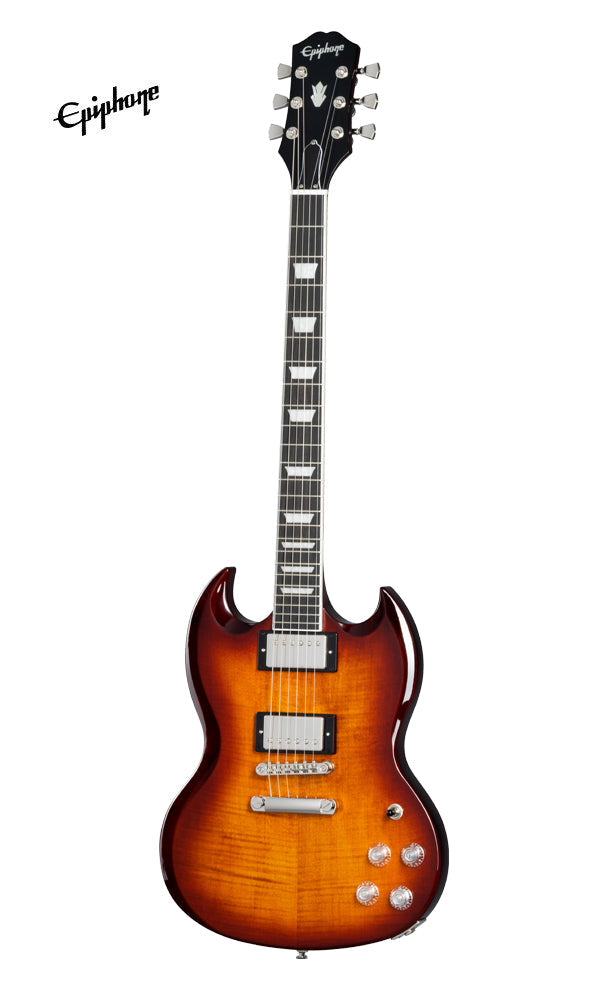

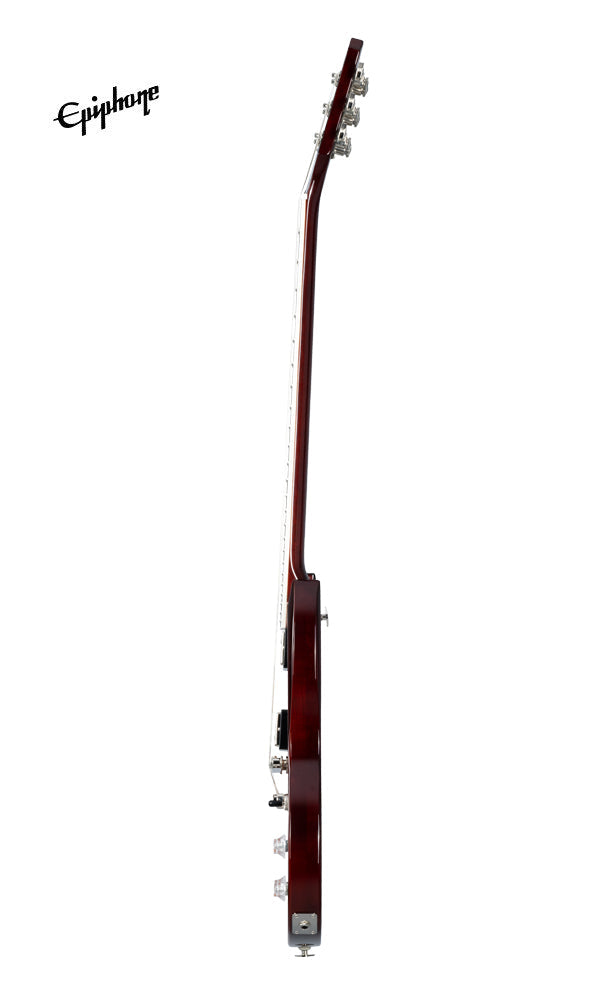

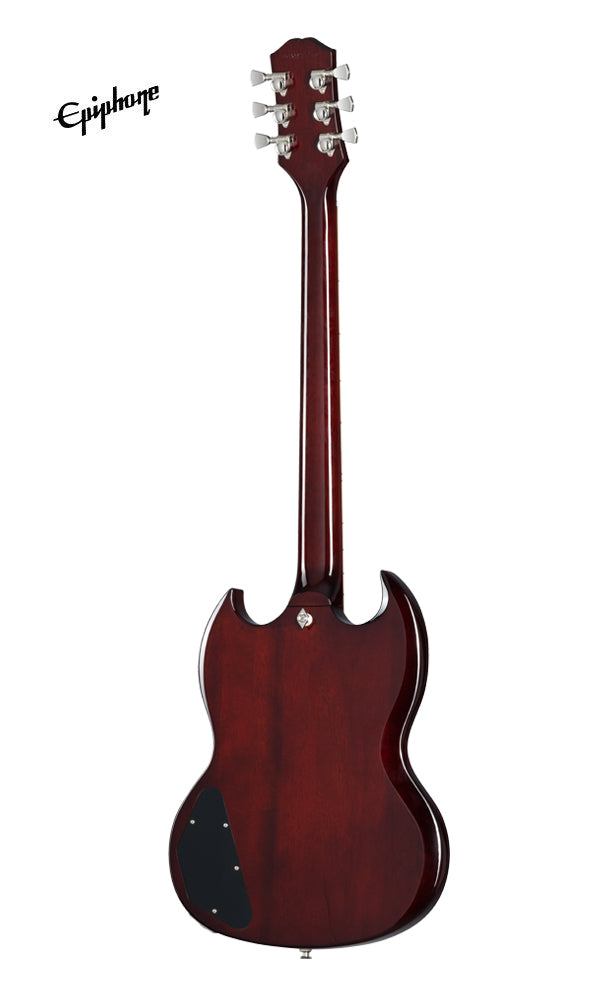

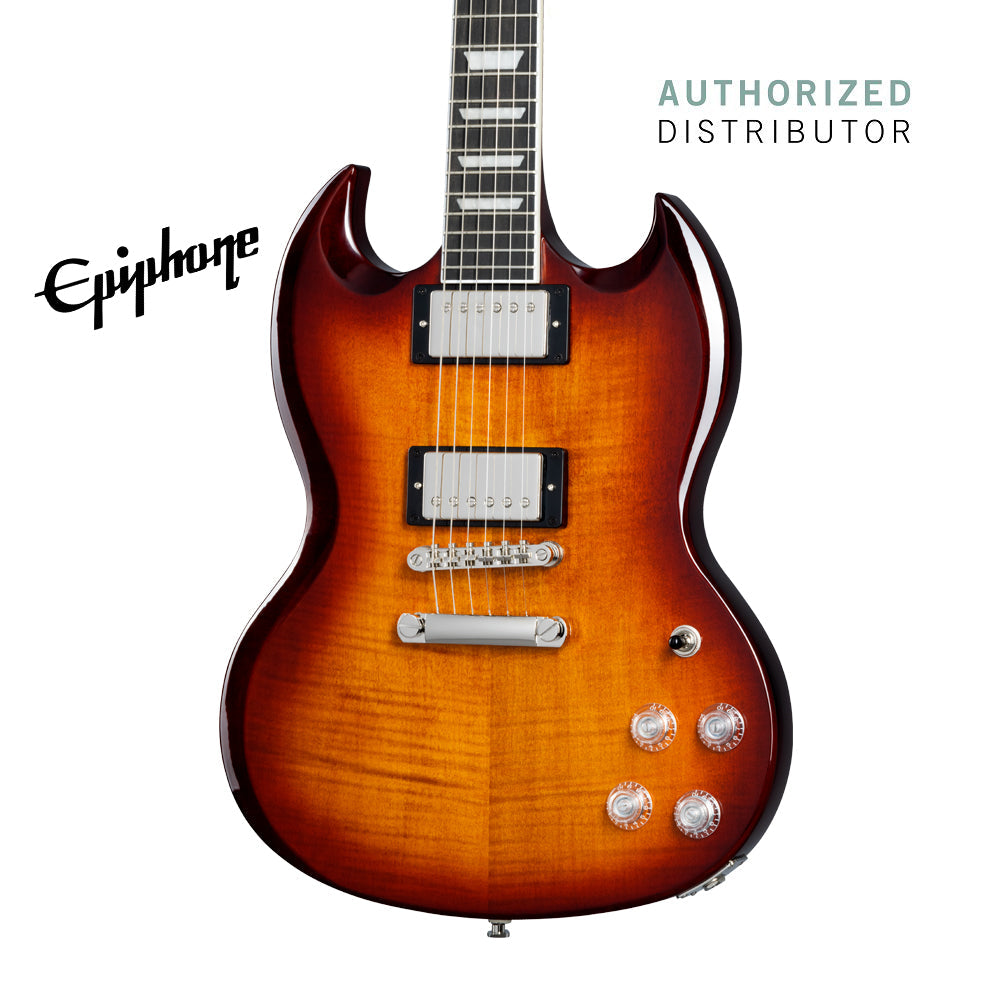

The SG of the Future

The SG Modern Figured from Epiphone's Inspired by Gibson Collection has the classic SG profile made from Mahogany and maple cap with AAA Figured Maple Veneer. Powered by a pair of Epiphone's ProBucker™ humbuckers with coil-splitting, phase switching, and treble bleed circuit for a multitude of tones. It also features an Ebony fingerboard, asymmetrical Slim Taper neck profile with contoured heel, and world-class Grover® Locking Rotomatic™ 18:1 ratio tuners, and a Graph Tech NuBone™ nut.

SPECIFICATIONS

BODY

Body Style
SG
Body Shape
SG
Body Material
Mahogany
Top
3/4" Maple with AAA Flame Maple Veneer
Body Finish
Gloss

NECK

Profile
Asymmetrical Slim Taper
Scale Length
628.65 mm / 24.75 in
Fingerboard Material
Ebony
Fingerboard Radius
304.8 mm / 12 in
Fret Count
24
Frets
Medium Jumbo
Nut Material
Graph Tech®
Nut Width
43.0 mm / 1.692 in
Inlays
Trapezoid
Joint
Glued in, Set Neck

HARDWARE

Finish
Nickel
Bridge
LockTone Tune-O-Matic
Tailpiece
LockTone Stop Bar
Tuning Machines
Grover locking Rotomatic; 18:1
Truss Rod
Adjustable
Control Knobs
Clear Top Hats with Ridge
Switch Tip
Black
Strap Buttons
2 - bottom and shoulder
Pickup Covers
Nickel

ELECTRONICS

Neck Pickup
ProBucker 2™ humbucker w/coil-splitting
Bridge Pickup
ProBucker-3™ humbucker w/coil-splitting
Controls
2 Volume (2 Push/Pull coil-splits); 2 Tone (1 Push/Pull Phase)
Pickup Selector
3-way Epiphone toggle
Output Jack
Epiphone Heavy Duty 1/4"

MISCELLANEOUS

Strings Gauge
.10, .13, .17, .26, .36, .46
Case
Optional SG Hard Case 940-EGCS; SG EpiLite™ Case 940-EGHG; Premium Solid Body Electric Guitar Gig bag 940-EPIGIG
